2024 Highlights
- The Chevrolet Silverado and GMC Sierra 3500 HD chassis cab continues to employ the Duramax L5P, also found in its pickup models, and therefore receives a horsepower and torque output increase for the 2024 model year. The 2024 L5P is rated at a peak 470 horsepower and 975 lb-ft of torque. The larger 4500, 5500, and 6500 Silverado models continue to employ the commercial grade L5D Duramax peaking at 350 horsepower and 700 lb-ft of torque.
- If the International CV Series series medium duty truck looks similar to the Silverado 4500, 5500, 6500 HD, its because the truck platform is the result of a partnership between GM and International Truck Co. Due to its maximum available GVWR, the International CV series has been excluded from this guide.
- All three vehicle manufacturers offer stationary and mobile PTO provisions on both gas and diesel powertrain configurations.

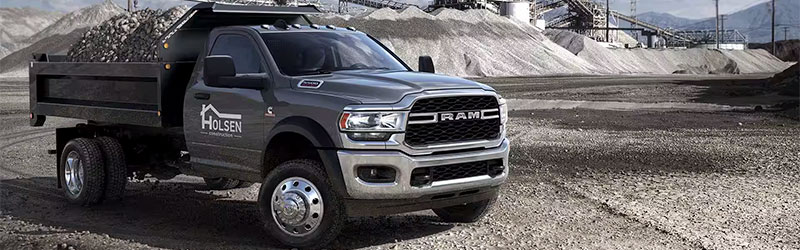

2024 Ram Trucks Ram 3500 HD, 4500 HD, 5500 HD
| Model | Ram 3500 HD SRW | Ram 3500 HD DRW | Ram 4500 HD | Ram 5500 HD |
| Gas Engine | Dodge 6.4L Hemi V-8 | |||
| Diesel Engine | Cummins 6.7L ISB I-6 | |||
| Peak Power (gas) | 370 hp @ 5,600 rpm | |||
| Peak Torque (gas) | 429 lb-ft @ 4,000 rpm | |||
| Peak Power (diesel) | 360 hp @ 2,800 rpm | |||
| Peak Torque (diesel) | 800 lb-ft @ 1,800 rpm | |||
| Transmission(s) | Aisin AS69RC 6 speed automatic (all diesel) Aisin AS66RC 6 speed automatic (standard, all gas) ZF 8HP75-LCV 8 speed automatic (select 3500 HD models only) |
|||
| GVWR Range | 10,700 - 12,000 lbs | 13,500 - 14,000 lbs | 15,000 - 16,500 lbs | 19,000 - 19,500 lbs |
| Max GCWR | 27,500 lbs | 33,000 lbs | 37,500 lbs | 43,000 lbs |
| Max FAWR | 6,000 lbs | 6,000 lbs | 7,250 lbs | 7,250 lbs |
| Max RAWR | 6,800 lbs | 9,850 lbs | 12,000 lbs | 13,500 lbs |
| Max Payload | 5,140 lbs | 7,760 lbs | 9,700 lbs | 12,550 lbs |
| Max Conventional Tow | To be calculated based on upfit equipment and vehicle operating weight | |||
| Max 5th Wheel/Gooseneck Tow | 20,730 lbs | 25,890 lbs | 29,800 lbs | 35,220 lbs |

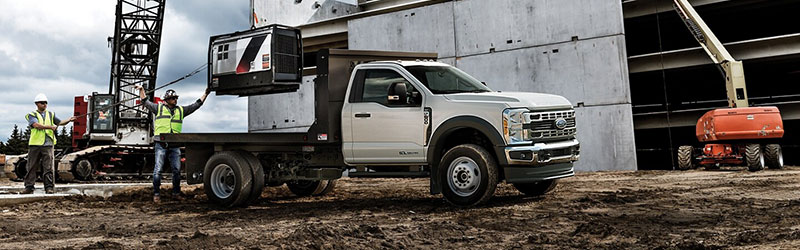

2024 Ford F-350, F-450, F-550 Super Duty
| Model | F-350 Super Duty SRW | F-350 Super Duty DRW | F-450 Super Duty | F-550 Super Duty |
| Gas Engine | Ford 7.3L PFI V-8 | |||
| Diesel Engine | Ford 6.7L Power Stroke V-8 | |||
| Peak Power (gas) | 335 hp @ 3,750 rpm | |||
| Peak Torque (gas) | 468 lb-ft @ 3,750 rpm | |||
| Peak Power (diesel) | 330 hp @ 2,200 rpm | |||
| Peak Torque (diesel) | 950 lb-ft @ 1,800 rpm | |||
| Transmission(s) | Ford 10R140 TorqShift 10 speed automatic | |||
| GVWR Range | 10,500 - 11,500 lbs | 14,000 lbs | 15,000 - 16,500 lbs | 17,500 - 19,500 lbs |
| Max GCWR | 31,000 lbs | 34,500 lbs | 39,000 lbs | 43,000 lbs |
| Max FAWR | 5,600 lbs | 5,600 lbs | 7,500 lbs | 7,500 lbs |
| Max RAWR | 6,780 lbs | 10,300 lbs | 12,880 lbs | 14,706 lbs |
| Max Payload | 5,000 lbs | 8,100 lbs | 9,890 lbs | 12,770 lbs |
| Max Conventional Tow | 13,500 lbs | 17,500 lbs | 17,500 lbs | 18,500 lbs |
| Max 5th Wheel/Gooseneck Tow | 23,600 lbs | 26,600 lbs | 30,300 lbs | 34,300 lbs |

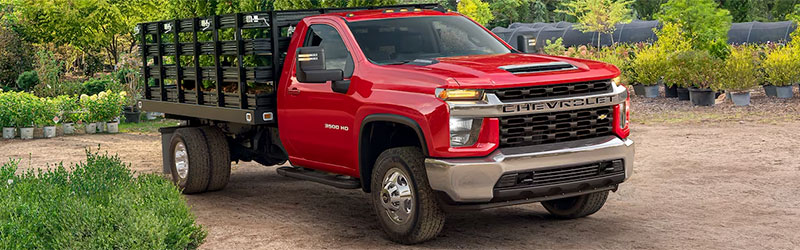

2024 Chevrolet Silverado 3500 HD, 4500 HD, 5500 HD
| Model | Silverado/Sierra 3500 HD | Silverado 4500 HD | Silverado 5500 HD |
| Gas Engine | 6.6L L8T V-8 | No available gas engines | |
| Diesel Engine | Duramax 6.6L L5P V-8 | Duramax 6.6L L5D V-8 | |
| Peak Power (gas) | 401 hp @ 5,200 rpm | Not applicable | |
| Peak Torque (gas) | 464 lb-ft @ 4,000 rpm | Not applicable | |
| Peak Power (diesel) | 470 hp @ 2,800 rpm | 350 hp @ 2,700 rpm | |
| Peak Torque (diesel) | 975 lb-ft @ 1,600 rpm | 700 lb-ft @ 1,600 rpm | |
| Transmission(s) | Allison 10L1000 10 speed automatic | Allison 1700/1750/2700/2750 Series 6 speed automatic | |
| GVWR Range | 14,000 lbs | 14,001 - 16,500 lbs | 17,500 - 19,500 lbs |
| Max GCWR | 40,000 lbs | 37,500 lbs | 37,500 lbs |
| Max FAWR | 5,600 lbs | 8,000 lbs | 8,000 lbs |
| Max RAWR | 10,400 lbs | 15,500 lbs | 15,500 lbs |
| Max Payload | 7,571 lbs | To be calculated based on upfit equipment and vehicle operating weight | |
| Max Conventional Tow | To be calculated based on upfit equipment and vehicle operating weight | ||
| Max 5th Wheel/Gooseneck Tow | |||
2024 Best-in-Class Chassis Cab Title Holders
Best-in-Class Diesel Horsepower
470 horsepower 6.6L Duramax L5P, 2024 Chevy Silverado/GMC Sierra 3500 HD
Runner up - 360 horsepower 6.7L Cummins ISB, 2024 Ram 3500, 4500, 5500 HD
Best-in-Class Diesel Torque
975 lb-ft 6.6L Duramax L5P, 2024 Chevy Silverado/GMC Sierra 3500 HD
Runner up - 950 lb-ft 6.7L Power Stroke, 2024 Ford F-250, F-350, F-450, F-550 Super Duty
Best-in-Class Gas Horsepower
401 horsepower 6.6L L8T V-8, 2024 Chevy Silverado/GMC Sierra 3500 HD
Runner up - 370 horsepower 6.4L Hemi V-8, Ram 3500, 4500, 5500 HD
Best-in-Class Gas Torque
468 lb-ft Ford 7.3L PFI V-8, 2024 Ford F-250, F-350, F-450, F-550 Super Duty
Runner up - 464 lb-ft 6.6L L8T V-8, 2024 Chevy Silverado/GMC Sierra 3500 HD
Best-in-Class Rear Axle Weight Rating (RAWR)
15,500 lbs, 2024 Chevy Silverado 4500, 5500 HD
Runner up - 14,706 lbs, 2024 Ford F-550 Super Duty
Best in Class Payload
12,770 lbs, 2024 Ford F-550 Super Duty
Runner up - 12,550 lbs, 2024 Ram 5500 HD
Definitions & Vehicle Classes
The values specified in this article refer to the maximum available rated capacity in model's lineup with any and all applicable equipment upgrades. Actual ratings will vary by vehicle configuration, optional equipment packages, and upfit equipment.
Definitions
- GVWR - Gross Vehicle Weight Rating. Maximum rated weight of a vehicle and its cargo, including passengers (excluding trailers).
- GCWR - Gross Combined Weight Rating. Maximum rated combined weight of a vehicle, its cargo, and trailer(s).
- Payload - Maximum weight of combined cargo that a vehicle can carry (excluding trailers).
- Conventional tow - Maximum rated total trailer weight when towing using a conventional "bumper pull" receiver hitch.
- 5th Wheel Tow - Maximum rated total trailer weight when towing using a 5th wheel hitch system.
- Gooseneck Tow - Maximum rated total trailer weight when using a gooseneck hitch system.
- FAWR - Front Axle Weight Rating. Maximum rated weight that can be applied to the axle.
- RAWR - Rear Axle Weight Rating. Maximum rated weight that can be applied to the axle.
- SWR - Single Rear Wheel
- DRW - Dual Rear Wheel
Applicable Vehicle Classes
This article is limited to Class III, IV, and V chassis cab trucks as classified by Federal Highway Administration standards. Under these classifications, a class III vehicle has a GVWR no less than 10,001 lbs and no greater than 14,000 lbs. A class IV vehicle has a GVWR no less than 14,001 lbs and no greater than 16,000 lbs. A class V vehicle has a GVWR no less than 16,001 lbs and no greater than 19,500 lbs. Class VI vehicles, including the Chevrolet 6500 HD, Ford F-600 Super Duty, and Ford F-650/F-750 do not fall under this criteria and thus have been omitted.
All mentions of "Best-in-Class" refer to the highest available rating available under the above vehicle classification criteria.
